Belt Guard Aftercoolers
ABG Series
| Model Number | A | B | C | D | E |
|---|---|---|---|---|---|
| ABG 30 | 23 | 35 | 7 | * | * |
| ABG 65 | 25.50 | 48 | 8.75 | * | * |
| ABG 80 | 33 | 51 | 10.50 | * | * |
| ABG 110 | 33 | 59 | 10.50 | * | * |
Note: *Upon request, various connectors and configurations are available.
Galvanized carbon steel casing
Removable galvanized expanded metal both sides
Installation and Maintenance
ABG Series aftercoolers are to be mounted on the compressor in place of a standard belt guard. Proper installation requires cutting of rear grill to fit motor pulley and compressor flywheel.
Periodic cleaning of the fin section can normally be done by blowing off accumulated dust and residue. No other maintenance is required.
Accessories:
Flexible Connections
Stainless steel braided corrugated hose protects core from compressor vibrations. (Must be properly installed to validate warranty).
Separator
Combination separator with automatic drain trap may be installed between aftercooler and receiver to remove condensed moisture from compressed air stream.
Belt Guard Aftercoolers
ABG Series

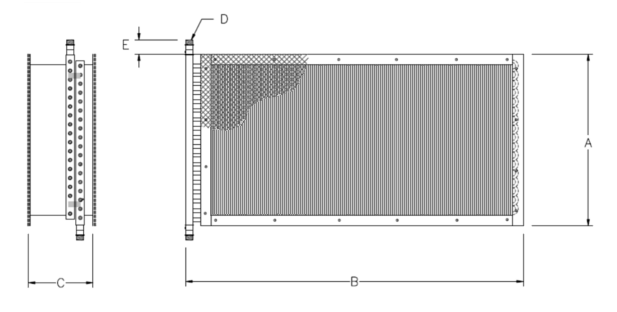

Approximate Dimensions in Inches
| Model Number | A | B | C | D | E |
|---|---|---|---|---|---|
| ABG 30 | 23 | 35 | 7 | * | * |
| ABG 65 | 25.50 | 48 | 8.75 | * | * |
| ABG 80 | 33 | 51 | 10.50 | * | * |
| ABG 110 | 33 | 59 | 10.50 | * | * |
| Note: *Upon request, various connectors and configurations are available. | |||||
|

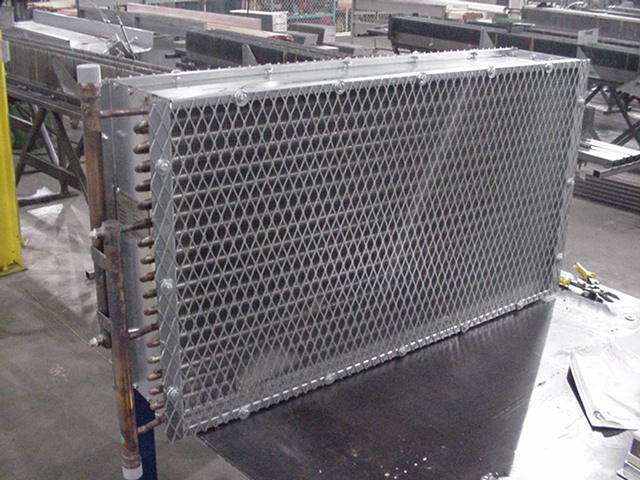

General Construction: Galvanized carbon steel casing Removable galvanized expanded metal both sides |
|||||
Installation and Maintenance
ABG Series aftercoolers are to be mounted on the compressor in place of a standard belt guard. Proper installation requires cutting of rear grill to fit motor pulley and compressor flywheel.
Periodic cleaning of the fin section can normally be done by blowing off accumulated dust and residue. No other maintenance is required.
Accessories:
Flexible Connections
Stainless steel braided corrugated hose protects core from compressor vibrations. (Must be properly installed to validate warranty).
Separator
Combination separator with automatic drain trap may be installed between aftercooler and receiver to remove condensed moisture from compressed air stream.
