AOC Series
Mobile oil coolers with standard models for cooling hydraulic power units, gear boxes, transmission and torque converters offering a universal mounting bracket and the Nelson SPIRO-FIN oil turbulator for efficient heat transfer.

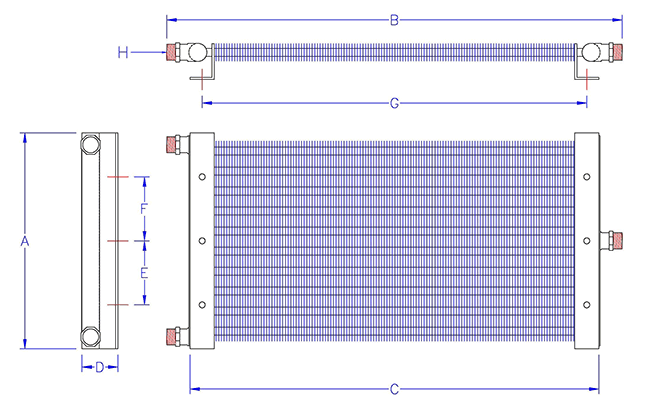

Approximate Dimensions in Inches
| Model Number | A | B | C | D | E | F | G | H MPT |
|---|---|---|---|---|---|---|---|---|
| AOC-5 | 13.50 | 28.41 | 25.50 | 2.34 | 4.00 | 4.00 | 24.00 | 1.00 |
| AOC-10 | 18.50 | 33.27 | 30.00 | 2.36 | 6.50 | 6.50 | 28.50 | 1.25 |
| AOC-15 | 21.00 | 38.27 | 35.00 | 2.36 | 7.75 | 7.75 | 33.50 | 1.25 |
| AOC-20 | 36.00 | 41.26 | 38.00 | 2.36 | 10.25 | 10.25 | 36.50 | 1.25 |
| AOC-25 | 31.00 | 43.77 | 40.00 | 2.49 | 12.75 | 12.75 | 38.50 | 1.50 |
| AOC-30 | 33.50 | 46.76 | 43.00 | 2.49 | 14.00 | 14.00 | 41.50 | 1.50 |
| AOC-35 | 36.00 | 49.26 | 45.50 | 2.49 | 15.25 | 15.25 | 44.00 | 1.50 |
| AOC-40 | 38.50 | 51.76 | 48.00 | 2.49 | 16.50 | 16.50 | 46.50 | 1.50 |
| AOC-45 | 41.00 | 55.75 | 50.50 | 2.74 | 17.75 | 17.75 | 49.00 | 2.00 |
